When people choose a mixer for an above-counter basin, they usually look at one number first:

mixer height.

That makes sense visually.

A vessel basin sits above the vanity, so the instinct is to choose a “tall basin mixer” that rises high enough to clear the rim.

But clearance is only the first requirement.

A mixer can be tall enough and still be wrong.

The more important question is often:

Where does the water actually land inside the basin?

That is controlled mainly by spout reach, the mixer position and the internal geometry of the bowl.

A mixer that clears the basin by 30 mm but sends water against the rear wall can be less comfortable than a shorter mixer with better reach.

A mixer that looks perfectly proportioned beside the basin can still create:

cramped handwashing;
splash onto the vanity;
water hitting the waste directly;
awkward mixer positioning;
excessive finished basin height;
poor cleaning access behind the bowl.

This is why above-counter basin and mixer selection should be treated as a geometry problem, not a styling problem.

The First Measurement Most Buyers Get Wrong

Product listings often make mixer height visually prominent.

For example, two current New Zealand basin mixers from Englefield show why height alone tells you very little.

The Studio Pin Basin Mixer has:

overall tap height: 141 mm
spout reach: 101 mm

The Milano Basin Mixer has:

overall tap height: 156 mm
spout reach: 101 mm

The Milano is 15 mm taller, but its published reach is exactly the same.

For the basin, those two mixers therefore project the water outlet forward by essentially the same published distance.

That is the key distinction:

Mixer height tells you how high the fitting rises. Spout reach tells you how far the outlet moves toward the useful part of the bowl.

Those numbers solve different problems.

1. “Tall Enough” Only Solves Rim Clearance

Imagine a vessel basin sitting 150 mm above the vanity top.

You need the mixer outlet to clear the rim.

That immediately rules out some short mixers.

But once clearance is achieved, adding another 30, 50 or 80 mm of mixer height does not automatically improve usability.

After the spout has cleared the basin, the next questions are:

How far is the mixer mounted behind the bowl?
How thick is the basin rim?
Where does the inner bowl begin?
How far does the spout project?
At what angle does the water leave the outlet?
Where will a user's hands naturally sit?

This is why buying a mixer using only the phrase “suitable for above-counter basins” is risky.

Two above-counter basins can have completely different shapes.

And two tall mixers can have completely different reaches.

2. Overall Basin Depth Is Not the Same as Useful Bowl Depth

This is one of the most important distinctions in the whole subject.

Suppose a basin is listed as:

550 × 350 mm

It is easy to think:

The basin is 350 mm deep, so the middle is about 175 mm from the back.

But the usable bowl is not necessarily 350 mm deep.

The outer dimension includes:

rear rim;
front rim;
wall thickness;
curved exterior;
decorative lip.

A real example shows how significant this can be.

Robertson's Cognac vessel basin is published at:

overall length: 550 mm
overall front-to-back width: 350 mm
height: 145 mm

Its technical drawing also shows different internal dimensions from the outer shell.

That means mixer selection should not be based on the outer 350 mm dimension alone.

What matters is the inner receiving zone where the water actually lands.

3. Think in Terms of a Water Landing Zone

Instead of asking whether the tap “reaches the basin”, draw the setup from the side.

You need four reference points:

A — Back of the basin

B — Inner rear wall of the bowl

C — Waste position

D — Inner front wall

The water outlet should usually land somewhere within the useful central washing zone—not simply anywhere inside A to D.

A poor setup might send water:

Too far back

The water lands close to the inner rear wall.

Possible result:

hands are pushed backward;
fingers touch the basin;
splash rebounds toward the mixer;
the area behind the basin remains constantly wet.

Directly onto the waste

This may look geometrically centred, but it is not automatically ideal.

Depending on:

flow;
aerator;
waste shape;
bowl slope;

water can rebound off a raised waste or create concentrated splash.

Too far forward

The water lands near the front slope.

Possible result:

splash projects toward the user;
water may escape over shallow rims;
the natural handwashing position becomes awkward.

So there is no universal instruction such as:

“Always aim exactly at the waste.”

The correct target depends on the bowl.

4. The Important Reach Is Not Just the Published Spout Reach

Published spout reach is normally measured from a reference point on the mixer body to the outlet.

That is useful.

But it is not the same as the final reach into the bowl.

You also need to account for mixer position on the vanity.

Consider this simplified example.

Mixer

Published spout reach:

110 mm

Installation

Mixer centreline sits:

65 mm behind the inner rear edge of the bowl

The effective projection into the bowl is approximately:

110 − 65 = 45 mm

That is very different from reading “110 mm spout reach” on the product page and assuming the water will land 110 mm inside the basin.

The vanity layout has consumed 65 mm of that reach before the water even crosses the inner edge.

This calculation is simplified because actual outlet geometry and measurement reference points vary by product, but it illustrates the correct way to think.

Product reach is not the same as usable bowl reach.

5. Why the Gap Behind the Basin Matters So Much

Above-counter basins are rarely mounted with their rear edge touching the mixer body.

There may be space for:

silicone;
cleaning;
the mixer base;
handle movement;
backsplash;
wall clearance.

That gap consumes spout reach.

Imagine:

basin rear edge to inner bowl = 20 mm;
mixer centreline sits 55 mm behind the basin;
spout reach = 100 mm.

The outlet may only project roughly:

100 − 55 − 20 = 25 mm

past the internal rear edge.

Again, that is an illustrative geometry calculation rather than a universal installation formula.

But it shows why a 100 mm mixer can look generous on a technical drawing while feeling short beside a particular bowl.

6. A Round Basin and an Oval Basin Can Need Different Reach

Even if the outer depth is identical.

Take two hypothetical 400 mm-deep basins.

Basin A — Round, steep-sided

The inner bowl becomes deep almost immediately after the rim.

A moderately short spout may still place water into a usable central zone.

Basin B — Wide oval, gently sloped

The rear wall transitions gradually toward the waste.

The same outlet position may land on the sloping rear surface rather than over the deeper water area.

That can produce a different splash pattern.

This is why you cannot reliably match mixers using:

basin width + mixer height

alone.

You need the sectional shape.

7. Vessel Basin Height Can Create a Second Problem

Above-counter basins change more than the tap.

They change the total height of the washing surface.

Take a simple example:

Vanity top:

850 mm above finished floor

Vessel basin:

160 mm high

Finished basin rim:

1,010 mm

That is before considering whether the basin wall is thick, whether the user must reach into it, or whether the vanity height can be adjusted.

A 160 mm-high vessel basin is not unusual. Robertson currently lists, for example, a 420 × 420 vessel basin at 160 mm high, while other vessel basins in its range are published at 110, 125, 140, 145, 150, 155, 168 and 170 mm high.

That variation is large enough to matter.

A vanity selected for an integrated top may not produce a comfortable finished height when a 160–170 mm vessel basin is placed on it.

8. There Is No Single “Correct Residential Vanity Height”

This is where online advice becomes unreliable.

You often see statements such as:

“A bathroom vanity should always be 850 mm high.”

That is too simplistic.

The correct finished height depends on:

users;
basin type;
whether children use the room;
accessibility requirements;
vanity construction;
intended use.

For comparison, BRANZ's recent accessible-design guidance suggests setting an accessible vanity or basin at around 750 mm, or to suit the user, while MBIE's accessible basin guidance recognises that different users may require different basin heights.

These are accessibility principles, not a mandatory height for an ordinary residential vanity.

They demonstrate the larger point:

Basin height should be designed around use, not copied from a generic internet number.

9. Tall Mixer + Tall Basin Can Make the Whole Composition Too Tall

Consider:

vanity: 850 mm
vessel basin: 160 mm
mixer: 300 mm overall height

The top of the mixer may be around:

1,150 mm above finished floor

depending on installation position and product geometry.

That can affect:

mirror height;
mirror-cabinet position;
shelf position;
splashback;
visual proportion.

The mixer may technically fit.

But the wall elevation may become crowded.

This is why the mixer should not be selected in isolation.

10. The Mixer Handle Can Be the Hidden Conflict

People naturally measure the spout.

But many mixers use a lever that moves:

backward;
outward;
upward;
through an arc.

If the mixer is squeezed between:

vessel basin;
wall;
splashback;

the handle may not have full travel.

This is particularly relevant when designers try to reduce the gap behind the basin to improve spout reach.

Moving the mixer forward solves one problem.

It may create another.

Before drilling the tap hole, check the mixer in:

off position;
full cold;
full hot;
full flow.

11. Cleaning Space Can Conflict With Reach

One way to gain more effective spout reach is to mount the mixer closer to the basin.

But if it is too close:

cleaning behind the basin becomes difficult;
water and soap collect between fittings;
the mixer base may be hard to wipe;
silicone joints become harder to reach.

So the goal is not:

minimise the basin-to-mixer gap.

It is:

use the smallest practical gap that still allows installation, operation and cleaning.

That dimension must be decided with the actual basin and actual mixer.

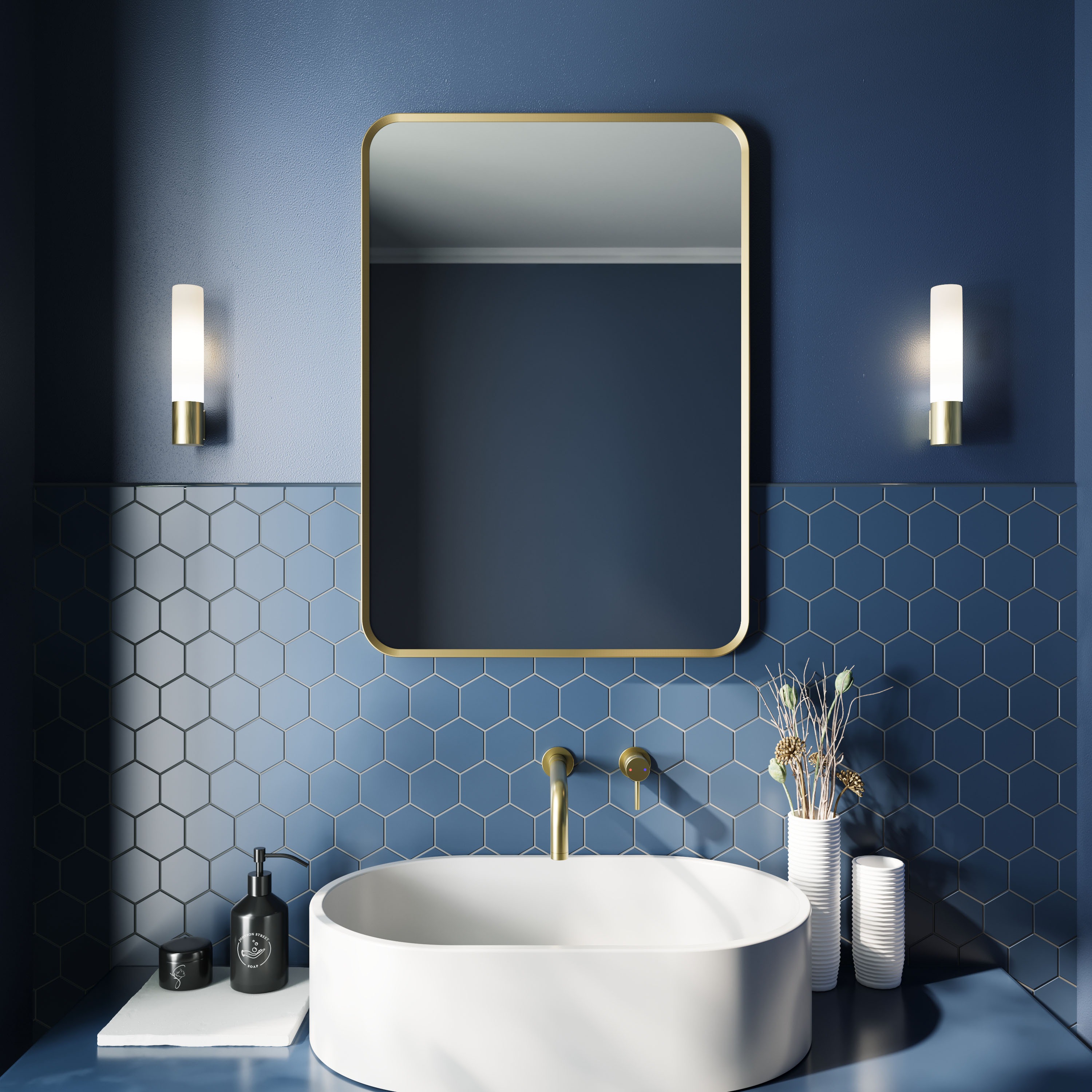

12. Wall-Mounted Mixers Change the Geometry Completely

A deck-mounted mixer has a fixed relationship between:

mixer base;
spout;
vanity top.

A wall-mounted mixer introduces another variable:

rough-in position.

For example, Englefield's current Studio Pin wall-mounted basin mixer publishes a 168 mm spout reach, considerably more than the 101 mm reach of its deck-mounted Studio Pin basin mixer.

That does not automatically make the wall mixer “better”.

The extra projection must match:

basin position;
wall finish;
bowl geometry.

And once the in-wall body is installed, later adjustment may be limited.

13. Wall-Mounted Mixer Rough-In Should Wait for the Basin Geometry

This is where a small planning error becomes expensive.

Imagine the plumber roughs in the wall mixer before the basin is finalised.

Later, the owner changes from:

a 110 mm-high vessel basin

to:

a 168 mm-high vessel basin.

Or changes from:

a 320 mm-deep basin

to:

a 420 mm-deep basin.

The mixer position may now be wrong vertically, horizontally or both.

Moving a deck-mounted mixer hole before drilling can be easy.

Moving a concealed mixer after:

wall lining;
waterproofing;
tiling;

is a different project.

So for wall-mounted basin mixers:

The basin should be treated as a rough-in dimension, not a late styling decision.

14. Do Not Measure to the Top of the Basin Rim Only

For vertical clearance, the critical reference is often:

spout outlet vs basin rim

But usability also depends on the drop from the outlet to the inner bowl.

Too little vertical space can make handwashing cramped.

Too much space can increase the distance water falls before hitting the basin.

That can increase splash with some basin shapes and flow patterns.

Again, there is no universal “perfect” outlet height because:

flow rate varies;
aerators vary;
basins vary;
user behaviour varies.

What matters is that the outlet position is tested as a system.

15. Flow Rate Changes How the Same Geometry Behaves

Two mixers can share the same reach and still behave differently.

For example, Englefield publishes both its Studio Pin and Milano basin mixers at 6 L/min and a 5-star WELS rating.

That gives a useful controlled comparison.

But across the broader market, flow rates and outlet characteristics differ.

Water may leave as:

aerated stream;
laminar stream;
angled stream;
vertical stream.

The more energetic the water arrives at the basin surface, the more important the landing surface becomes.

So splash cannot be predicted by reach alone.

Reach tells you where the water arrives.

Flow and basin geometry influence what happens when it gets there.

16. A Simple Worked Example

Here is how I would assess a vessel basin before drilling anything.

Basin

Overall front-to-back dimension:

400 mm

Rear rim/internal wall allowance:

approximately 25 mm

Waste centre:

approximately 200 mm from outer rear edge

Mixer position

Mixer centreline:

55 mm behind outer rear edge of basin

Mixer A

Spout reach:

100 mm

Approximate outlet position from basin's outer rear edge:

100 − 55 = 45 mm

Approximate outlet position past inner rear wall:

45 − 25 = 20 mm

That is very close to the back of the useful bowl.

Mixer B

Spout reach:

150 mm

Approximate outlet position:

150 − 55 = 95 mm

Past inner rear wall:

95 − 25 = 70 mm

Mixer B may place the stream further into the usable bowl.

But that still does not prove Mixer B is ideal.

Next we need to check:

bowl slope at 70 mm;
waste position;
outlet angle;
handle clearance;
vertical drop;
splash behaviour.

That is what I mean by system geometry.

17. Why “Aim for the Centre of the Waste” Is Not a Rule

This advice appears frequently online.

It is easy to remember.

It is also too absolute.

A centre-waste basin may have:

a raised waste cap;
a flat base;
steep sides.

Another may have:

linear waste;
offset waste;
shallow floor;
sloping rear surface.

The ideal water landing position is not determined by the waste alone.

The waste is a useful reference point.

It is not a universal target.

18. A Better Way to Mark the Mixer Position

Before drilling the vanity or benchtop:

Step 1

Place the actual basin in its intended position.

Do not rely only on catalogue dimensions.

Ceramic basins can have manufacturing tolerances; Robertson, for example, specifies a ±10 mm allowance for vitreous china dimensions on some current vessel-basin products.

Step 2

Mark the outer basin position with low-tack tape.

Step 3

Identify the inner rear wall.

Step 4

Place or template the actual mixer behind the basin.

Step 5

Check full handle movement.

Step 6

Project the outlet position vertically into the basin.

Step 7

Ask where that line lands on the internal bowl.

Step 8

Check cleaning access behind the mixer and basin.

Step 9

Only then confirm the tap-hole position.

This takes a few minutes.

Moving the hole afterwards may be impossible.

19. The Product Drawing Is More Important Than the Product Photo

Lifestyle photos are excellent for:

finish;
proportion;
style.

They are poor installation documents.

Before pairing a mixer and vessel basin, obtain technical drawings showing:

Mixer

overall height;
outlet height;
spout reach;
base diameter;
tap-hole requirement;
handle movement if available.

Basin

overall depth;
overall height;
inner bowl dimensions;
waste position;
wall/rim thickness;
tap deck if any.

Without those dimensions, the pairing is still partly guesswork.

20. Representative Failure: The Mixer Was Tall Enough but Too Short

Imagine a homeowner buys:

150 mm-high vessel basin;
300 mm-tall mixer.

The product listing says the mixer is suitable for vessel basins.

Installation looks correct.

The spout clears the rim comfortably.

But the basin is mounted relatively far forward so there is cleaning space behind it.

The mixer's reach is only 95 mm.

Once the rear rim thickness and mixer setback are deducted, the stream lands close to the inner rear wall.

Daily result

Every time someone washes their hands:

fingers crowd the rear wall;
splash hits the mixer base;
water collects behind the basin.

Nothing is technically broken.

The products are individually good.

The geometry is bad.

21. Representative Failure: Fixing Reach Made the Handle Unusable

The installer notices that the mixer does not reach far enough into the basin.

So the mixer is moved forward.

Now the outlet position is better.

But the rear lever hits the basin when opened fully.

The new problem exists because one dimension was corrected without testing the entire fitting.

Better sequence

Before drilling:

position basin;
position mixer;
test outlet;
test handle;
test cleaning gap;
test wall clearance.

All six need to work at the same time.

22. Representative Failure: The Basin Became Too High

A homeowner likes an 850 mm-high vanity.

Later, a 168 mm vessel basin is added.

Finished rim:

approximately 1,018 mm

The user is shorter than average and now finds the bowl uncomfortable.

The mixer choice may be perfectly compatible with the basin.

But the vanity + basin combination was never assessed.

The correct fix would have happened before the vanity height was locked in.

23. Five Numbers I Want Before Matching a Mixer

For an above-counter basin, I want at least these:

1. Basin overall height

Determines finished rim height.

2. Basin outer front-to-back dimension

Gives the general footprint.

3. Basin inner rear edge

Shows where the useful bowl begins.

4. Mixer spout reach

Shows the outlet projection.

5. Planned mixer centreline

Connects product reach to actual bowl position.

Ideally I also want:

outlet height;
waste centreline;
bowl section;
handle movement;
basin-to-wall gap.

24. The Most Useful Calculation

For a deck-mounted mixer, think approximately in this form:

effective reach into bowl = mixer spout reach − mixer setback − rear rim/internal-wall allowance

Do not treat this as an engineering formula.

Manufacturers define dimensions differently and spout outlets may be angled.

It is a planning model.

Its value is that it forces you to stop comparing one product number in isolation.

25. A Practical Selection Matrix

Situation: shallow basin + mixer close to bowl

A moderate reach may work.

Main risk:

excess projection.

Situation: deep basin + mixer well behind bowl

Longer reach becomes more important.

Main risk:

water landing too far back.

Situation: tall vessel basin

Outlet height becomes critical.

Main risk:

rim collision or excessive finished height.

Situation: wall-mounted mixer

Rough-in geometry becomes critical.

Main risk:

irreversible set-out error.

Situation: rear lever mixer in a tight gap

Handle movement becomes critical.

Main risk:

lever collision.

Situation: very shallow bowl

Flow and landing angle become critical.

Main risk:

splash.

26. Before You Drill the Tap Hole

Use this checklist.

Basin

□ Actual basin is onsite where possible
□ Overall height checked
□ Finished basin rim height calculated
□ Inner bowl shape inspected
□ Rear rim thickness considered
□ Waste location noted

Mixer

□ Spout reach checked
□ Outlet height checked
□ Base diameter checked
□ Hole size checked
□ Full handle movement tested
□ Outlet angle understood

Position

□ Mixer setback marked
□ Water landing point projected
□ Basin-to-mixer cleaning gap checked
□ Wall clearance checked
□ Mirror or splashback relationship checked

Use

□ Hands can sit naturally under water
□ Water is not concentrated on rear wall
□ Stream is not obviously too close to front edge
□ Mixer remains easy to clean
□ User height works with finished basin rim

Do not drill because the mixer “looks about right”.

Final Takeaway

Choosing a mixer for an above-counter basin is not mainly a question of buying a tall tap.

Height answers one question:

Will the spout clear the basin?

Reach answers another:

Will the water arrive in the useful part of the bowl?

And even reach is only useful when combined with:

mixer setback;
rim thickness;
bowl geometry;
outlet height;
flow;
handle movement;
finished vanity height.

That is why two beautifully designed, correctly sized products can still make a poor pair.

The correct mixer is not the one that simply clears the basin. It is the one that places the outlet, water and controls in the right relationship with the bowl and the person using it.

Before you buy—or at the very least before anyone drills the tap hole—draw the combination in section.

That side view often tells you more than the product photograph ever will.

Sources and Further Reading

Englefield — Studio Pin Basin Mixer
Published dimensions include 141 mm tap height and 101 mm spout reach.
https://englefield.co.nz/studio-pin-basin-mixer/

Englefield — Milano Basin Mixer
Published dimensions include 156 mm tap height and 101 mm spout reach.
https://englefield.co.nz/milano-basin-mixer/

Englefield — Studio Pin Wall Mount Basin Mixer
Published spout reach: 168 mm.
https://englefield.co.nz/studio-pin-wall-mount-basin-mixer/

Robertson — Cognac Vessel Basin
Technical documentation provides separate external and internal basin dimensions.
https://www.robertson.co.nz/storage/specsheets/27393-10.pdf

Robertson — Vessel Basin Range
Shows current vessel basins with heights ranging across multiple dimensions, including 110 mm, 125 mm, 140 mm, 150 mm, 155 mm and 170 mm examples.
https://www.robertson.co.nz/storage/download/ideas/23/1%20-%20Basins.pdf

BRANZ — Accessible Design: Making Wet Areas Safer
Includes guidance on vanity/basin height and user-specific accessibility.
https://www.branz.co.nz/design-build/articles/accessible-design-making-wet-areas-safer

MBIE — Sanitary Fittings
Discusses designing basin and tap positions to suit different users.
https://www.building.govt.nz/building-code-compliance/d-access/accessible-buildings/fixtures-and-fittings/sanitary-fittings
